KFI RANGER MULTI-MOUNT

Details

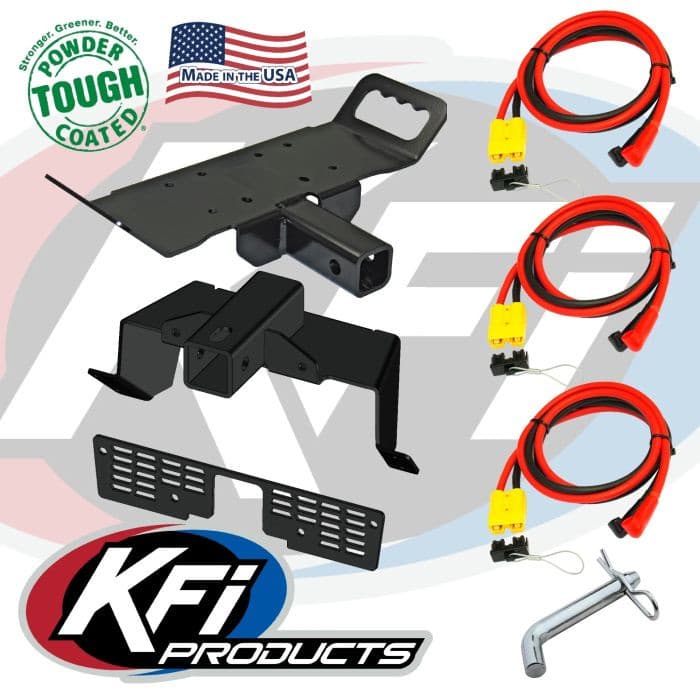

This kit will allow you to mount your winch on the front or the rear of your Polaris Ranger using the stock rear 2" receiver and the supplied front 2" receiver. Includes: (1) Front upper 2" receiver that mounts in the location shown in the picture (#100875) (1) 2" Receiver Winch Mount (#100620) (1) 20" Quick Connect that gets wired to your winch leads (#QC-20) (1) 48" Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48) (1) 120" Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120) (1) Standard 5/8" Hitch Pin (#ATV-20PIN) 100% Made in the USA Constructed of 3/16" steel Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep. Powder coated black for supreme durability Complete installation instructions included All mounting hardware included Satisfaction guaranteed Roller fairlead and winch not included Designed to work with the following winches: Note: This mount requires a roller fairlead bracket that comes with most of the winches out there. If your winch kit did not come with a fairlead bracket you will need the following: For most winches with a 4-Hole 3.00" x 4.875" (STANDARD) KFI #100495 For most winches with a 4-Hole 3.00" x 6.600" (WIDE) KFI #100695 For WARN VRX or AXON winches with a 3.00" x 4.875" (STANDARD) KFI #101715 KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 KFI: AM-25 / AM-35 / AS-25 / AS-35 KFI: AS-50x / AS-50wx WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S WARN: AXON 35 / AXON 35-S / AXON 45RC WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs WARN: RT40 / XT40 WARN: Vantage 4000lbs / ProVantage 4500lbs RAMSEY: ATV2500 / ATV3000 SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 MASTER LOCK: 1500lbs #2955AT Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF. CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500 BADLAND: Apex 5500 Wide BADLAND: 2-Hole Winches BADLAND: Standard Winches BADLAND: WIDE Winches CHAMPION: 2-Hole Winches CHAMPION: Standard Winches CHAMPION: WIDE Winches CHAMPION: 14001 and 14061 SMITTYBILT: XRC 2.0 Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF. Listed models come with incorrect ATV roller fairleads. SMITTYBILT: XRC 3.0 / XRC 4.0 XGEAR: X3000 / X4000 4-Hole Standard (3.00" x 4.875" bolt pattern) KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) All with 3.00" x 4.875" bolt pattern mount-up. All with 3.00" x 6.600" bolt pattern mount-up. TRAVELLER: 1078311 TRAVELLER: 1078088 / 1078302 Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF Possibly many others with the below standard mounting patterns, call to confirm. 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern) 2-Hole (3.10" with rollers that are 4.875" bolt pattern)

Specs

Vehicle

ATV/UTV, Winter

Weight Lb

31.2

Shipping Class

standard
