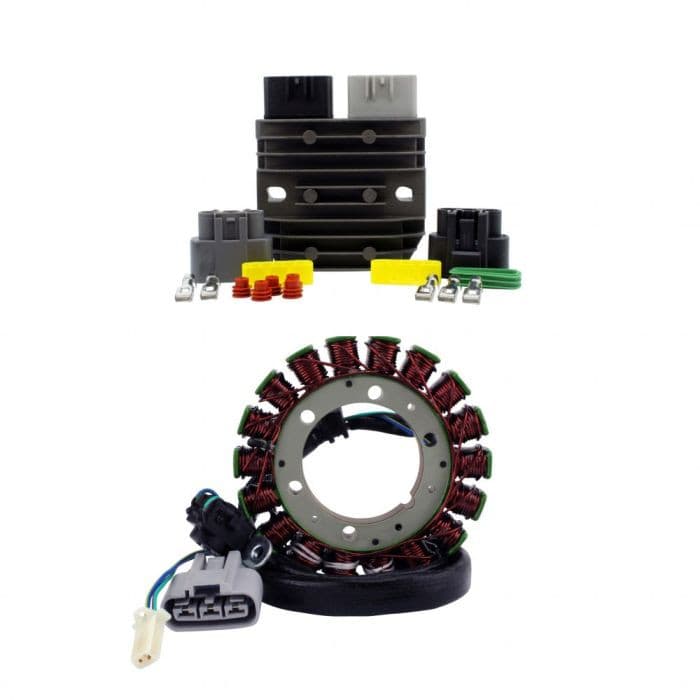

RMSTATOR 250W AC TO DC CONVERSION BATTERY CHARGING KIT

Details

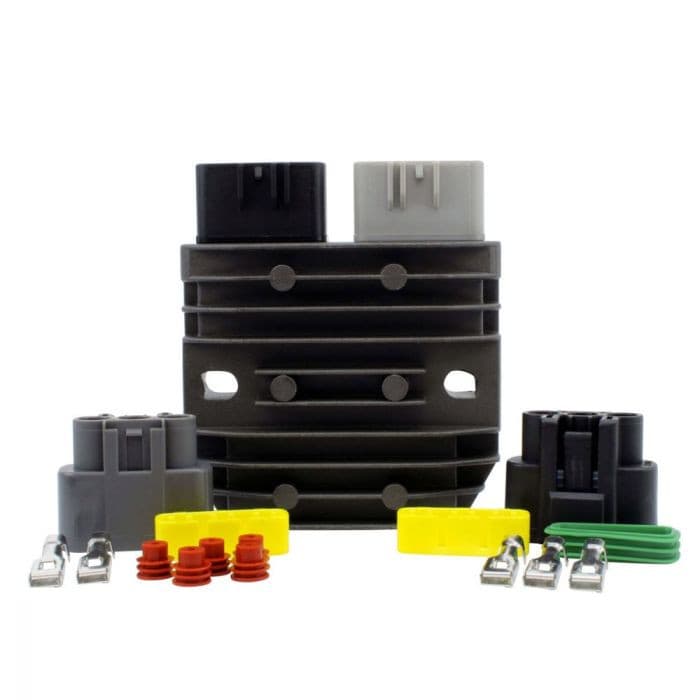

This kit is designed to convert the Honda XR650R charging system to a true three phase 250W output intended to charge a battery for power electrical accessories such as lights, heated gear, radiator fan, GPS/ gauges, and more. It currently includes the stator and SERIES voltage regulator rectifier. Note that this kit requires custom installation. You must install and mount a battery, DC CDI box, voltage regulator, and wire accordingly. Connectors included All products are tested Runs much cooler than the Shunt and MOSFET voltage regulator rectifier. Power only flows through the electrical components when the battery is charging. Allows the stator to have lower current flowing when not used, extending its lifetime. The regulator is easier to mount because it’s smaller than the OEM one. With enhanced technology design This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part. Stator: Highest grade of lamination materials Highest grade of copper winding, resistant to 200 degrees Celsius Pick up pulsar coil included Rubber grommet included SERIES Voltage Regulator: Improved heat sink and charging capabilities Higher grade of electric components We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Specs

Vehicle

Offroad

Weight Lb

3.55

Shipping Class

standard
