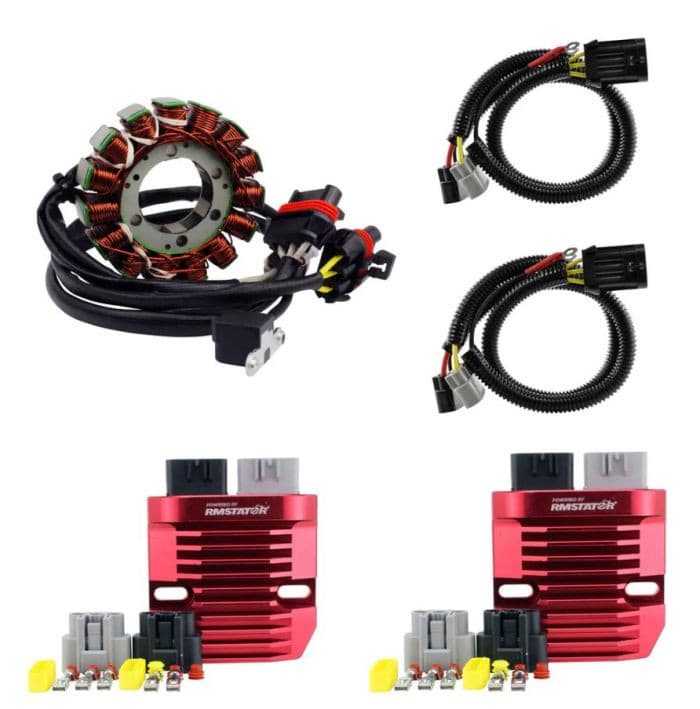

RMSTATOR 625W SPLYT DUAL STATOR + SERIES VOLTAGE REGULATOR

Details

Why use the SPLYT Technology? As featured by Dirt Trax television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures while providing increased output for accessories. Using a dual output stator with two separate 3 phase windings, this system splits the power generated between 2 voltage regulators. Each regulator then operates with only half the load, allowing them to maintain a lower temperature and increase reliability, even at higher power levels. Ultimate reliability With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output. Better design Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two separate three-phase coil windings. Each of these windings then produces half of the power of the stator, lowering the temperature in each individual coil. Easy to install All parts use a Plug & Play design just like the original OEM configuration. No special tools or knowledge is needed to install this system. Harnesses included Wiring harnesses are included for easy plug-in connections between the stator, regulator, and battery. This ensures the best possible connections with brand new premium wire and terminals. This kit includes: RMSTATOR SPLYT Stator Two SERIES voltage regulators Two automotive grade wiring harnesses with OEM-quality heavy-duty connectors and terminals Complete installation instructions All item pictures are accurate, matching exactly what you will receive. SPLYT Dual Output Stator: Dimensions: Interior diameter: 43 mm Exterior diameter: 105 mm Thickness: 20 mm Length of wires Stator to grommet: 200 mm Length of wires grommet to plug: 800 mm Length of pickup coil's wire to grommet: 85 mm Other specifications: Number of wires: 8 Number of plugs: 3 Number of pins: 8 Number of poles: 15 Wire to wire resistance: Alternator: Yellow to Yellow = 0.1 ohms +/-20% Alternator: Black to Black = 0.1 ohms +/-20% Pickup Coil: White to Grey = 484 ohms +/-20% Machined Aluminum SERIES Regulator: Dimensions: Width: 103 mm Length: 103 mm Height: 28 mm Fixation holes center to center: 80 mm Other specifications: Number of plugs: 2 Number of pins: 5 Minimum Charging Voltage: 14.5 V +/- 0.5 V Maximum Charging Current: 50 A / 500 W Open Circuit Voltage: Harness: Wires length: 600 mm Number of yellow wires: 3 Number of red wires: 1 Number of black wires: 1 Number of plugs: 3 Before installing your new SPLYT stator + SERIES Machined Aluminum Voltage Regulator Rectifiers + Conversion Harnesses Check the AC output of the stator Replace any burned or corroded connectors on stator and regulator rectifier Check and repair any melted wiring Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010". Warning: Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction. Vehicle Fitments 2025 Yamaha YXM 700 Viking2025 Yamaha YXC 700 Viking VI2024 Yamaha YXM 700 Viking2024 Yamaha YXC 700 Viking VI2023 Yamaha YXM 700 Viking2023 Yamaha YXC 700 Viking VI2022 Yamaha YXM 700 Viking2022 Yamaha YXC 700 Viking VI2021 Yamaha YXM 700 Viking2021 Yamaha YXC 700 Viking VI2020 Yamaha YXM 700 Viking2020 Yamaha YXC 700 Viking VI2019 Yamaha YXM 700 Viking2019 Yamaha YXC 700 Viking VI2018 Yamaha YXM 700 Viking2018 Yamaha YXC 700 Viking VI2017 Yamaha YXM 700 Viking2017 Yamaha YXC 700 Viking VI2016 Yamaha YXM 700 Viking2016 Yamaha YXC 700 Viking VI2015 Yamaha YXM 700 Viking2015 Yamaha YXC 700 Viking VI2014 Yamaha YXM 700 Viking2013 Yamaha YXR 700 Rhino2012 Yamaha YXR 700 Rhino2011 Yamaha YXR 700 Rhino2009 Yamaha YXR 700 Rhino2008 Yamaha YXR 700 Rhino

Specs

Weight Lb

6.55

Shipping Class

standard
