RMSTATOR KIT 850W STATOR + VOLTAGE REGULATOR

Details

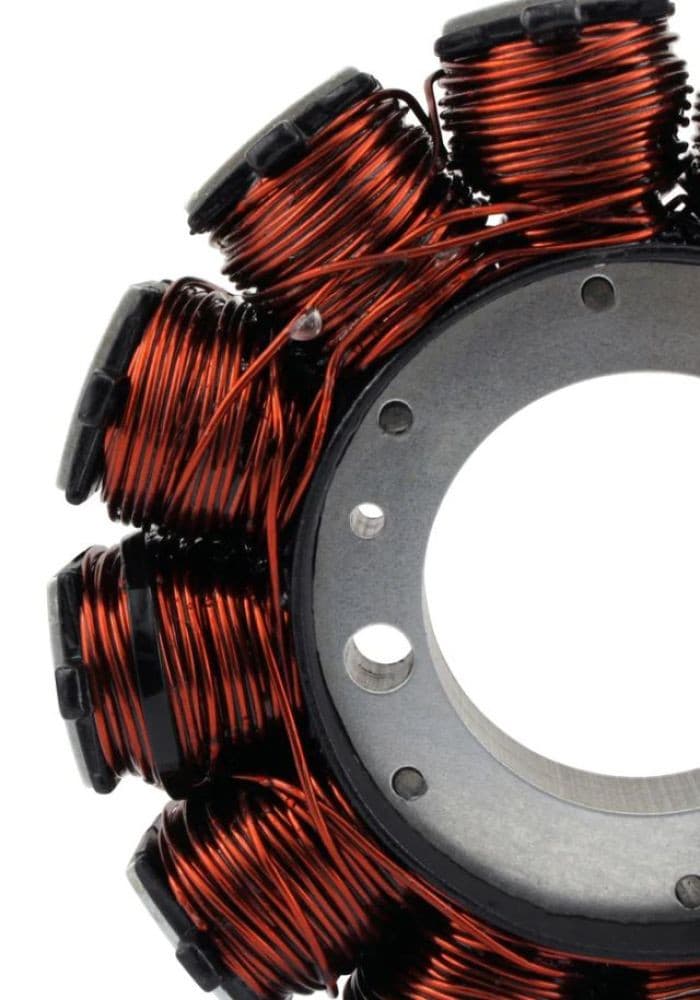

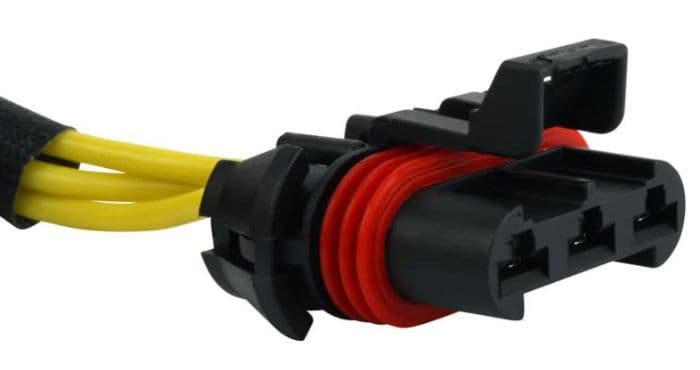

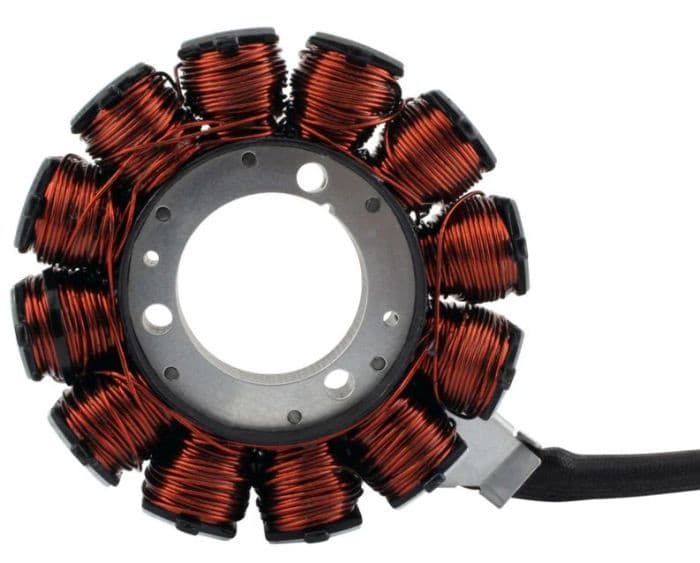

850W Stator + Voltage Regulator Kit Direct replacement to your original units Plug-and-play, direct fit, easy installation All RMStator products are tested Stator: Highest grade of lamination materials Highest grade of copper winding, resistant to 200 degrees Celsius Connectors included Rubber grommet included Voltage Regulator: No assembly required Higher grade of electric components Improved heat sink and charging capabilities The quality exceeds the OEM equipment Stator: Dimensions: Interior diameter: 42 mm Exterior diameter: 115 mm Thickness: 17 mm Length of wires stator to grommet: 280 mm Length of wires grommet to plug: 995 mm Other specifications: Number of wires: 3 Number of plugs: 1 Number of pins: 3 Number of poles: 12 Wire to wire resistance: Alternator: Yellow to Yellow = 0.3 ohms +/-20% Alternator: Yellow to ground = O.L Voltage Regulator: Dimensions: Width: 89 mm Length: 120 mm Height: 40 mm Stator Wires length: 280 mm Distance between fixation holes center to center: 112 mm Other specifications: Number of plugs: 3 Number of pins: 5 Number of wires: 5 Minimum Charging Voltage: 14.5 V +- 0.5 V Maximum Charging Current: 65 A / 850 W Open Circuit Voltage: Before installing your new stator + voltage regulator Check the AC output of the stator Replace any burned or corroded connectors on stator and regulator rectifier Check and repair any melted wiring Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010". Warning: Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction. Vehicle Fitments 2025 Can-Am Maverick Max X3 1000RR Turbo2025 Can-Am Maverick X3 1000RR Turbo2024 Can-Am Maverick Max X3 1000RR Turbo2024 Can-Am Maverick X3 1000RR Turbo2023 Can-Am Maverick Max X3 1000RR Turbo2023 Can-Am Maverick X3 1000RR Turbo2022 Can-Am Maverick Max X3 1000RR Turbo2022 Can-Am Maverick X3 1000RR Turbo2021 Can-Am Maverick Max X3 1000RR Turbo2021 Can-Am Maverick X3 1000RR Turbo

Specs

Vehicle

ATV/UTV

Weight Lb

5.6

Shipping Class

standard
