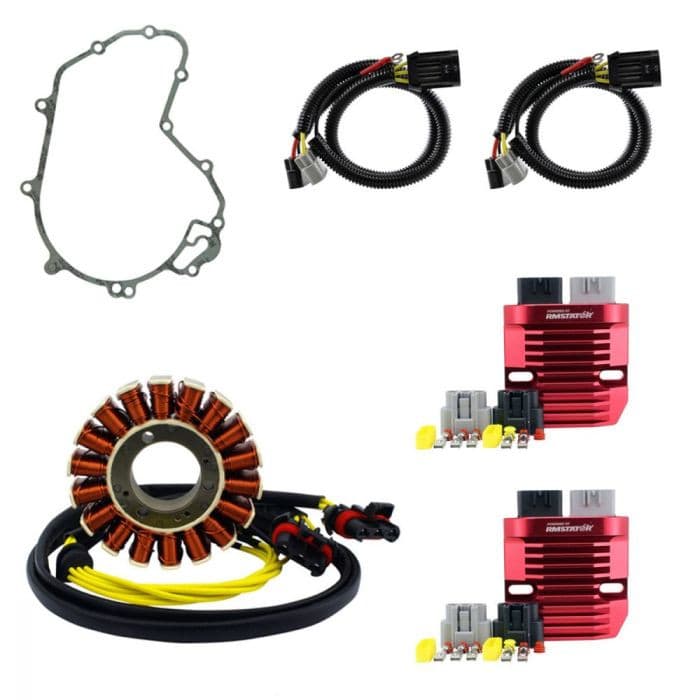

RMSTATOR SPLYT DUAL STATOR + SERIES VOLTAGE REGULATOR + GASKET

Details

Can-Am models have long needed more power and more reliability from their charging system. This system provides over 150-Watts of increased output with peace of mind from dual voltage regulators. Why use the SPLYT Technology? RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures while providing increased output for accessories. Using a dual output stator with two separate 3-phase windings, this system splits the power generated between 2 voltage regulators. Each regulator then operates with only half the load, allowing them to maintain a lower temperature and increase reliability, even at higher power levels. Ultimate reliability With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output. Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two separate three-phase coil windings. Each of these windings then produces half of the power of the stator, lowering the temperature in each individual coil. All parts use a Plug & Play design just like the original OEM configuration. No special tools or knowledge is needed to install this system. Wiring harnesses are included for easy plug-in connections between the stator, regulator, and battery. This ensures the best possible connections with brand new premium wire and terminals. This kit includes: RMSTATOR SPLYT Stator OEM quality stator cover gasket Two SERIES voltage regulators Two automotive grade wiring harnesses with OEM-quality heavy-duty connectors and terminals Complete installation instructions OEM 420685632

Specs

Vehicle

ATV/UTV

Weight Lb

6.63

Shipping Class

standard
