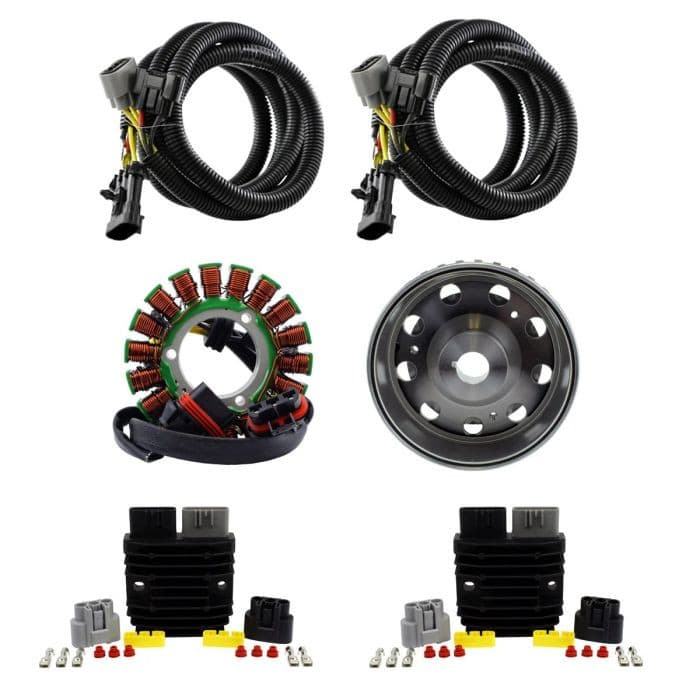

RMSTATOR SPLYT SUPERCHARGED STATOR VOLTAGE REG FLYWHEEL

Details

RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability. Ultimate reliability With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output Better design Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two completely separate three-phase coil windings. Each of these two windings then produces half of the power of the stock stator lowering the temperature in each individual coil. More available power If you are installing a lot of accessories and electronics on your vehicle, like extra lighting, stereos or a winch, the SPLYT kit is available with an improved flywheel designed to increase power output from 650 Watts to 900 Watts Easy to install All parts use a Plug-and-Play design, just like the original OEM ones, so no special tool or knowledge is needed to install this system This kit includes: Dual output stator Two SERIES voltage regulators Improved high output flywheel Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors Flywheel puller Gasket Complete instructions for voltage regulator relocation IMPORTANT NOTICE: This kit includes two wiring harness according to Polaris recall # Z-16-01-C (OEM # 2206620, 2206367,2206473). It is strongly suggested you relocate both of your regulators to make sure they do not wear out prematurely due to mud, dust or rocks

Specs

Vehicle

ATV/UTV

Weight Lb

15.44

Shipping Class

standard
